Red Sands Fort
The Control Tower
Page 2 of 3

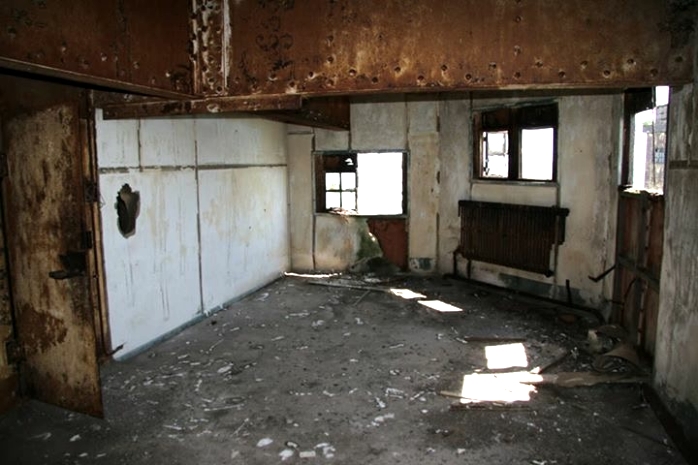

31. Fort Office
Designated as Spare Room on plans, corridor on right between water tanks to Sick Bay & Men's Sleeping

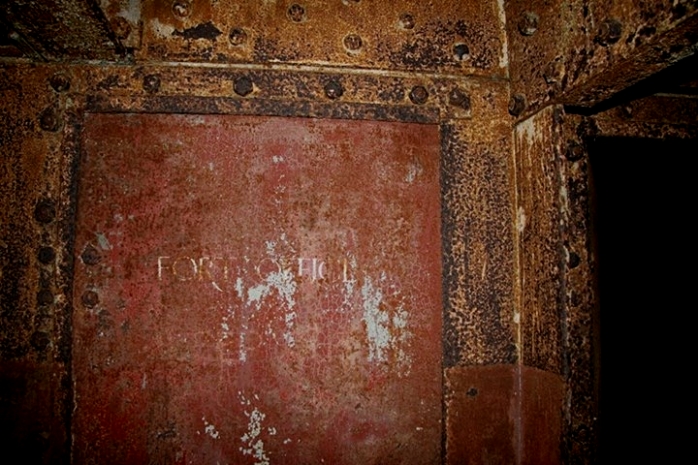

32. Fort Office Door close up

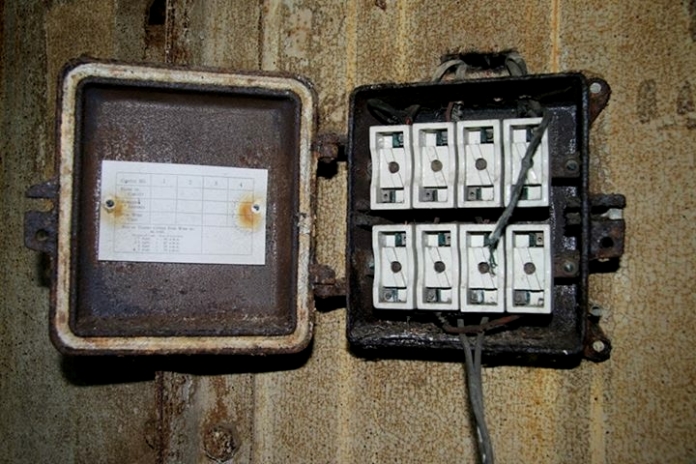

33. Fuse Box
34. 5 Amp Mains Socket

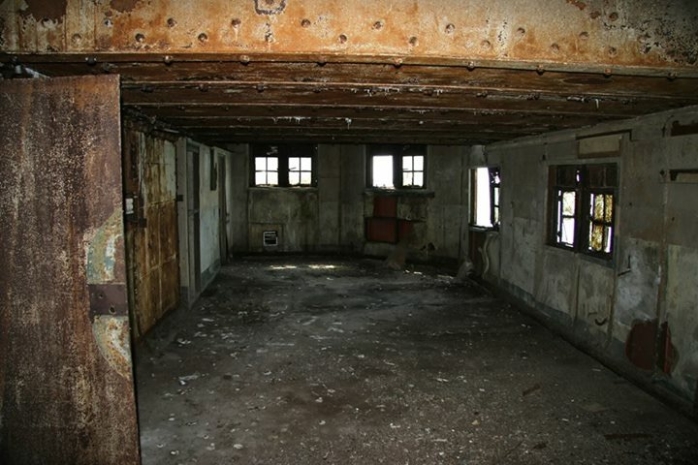

35. Men's Sleeping Area
| 36.
G4 from Plotting Room |
37.

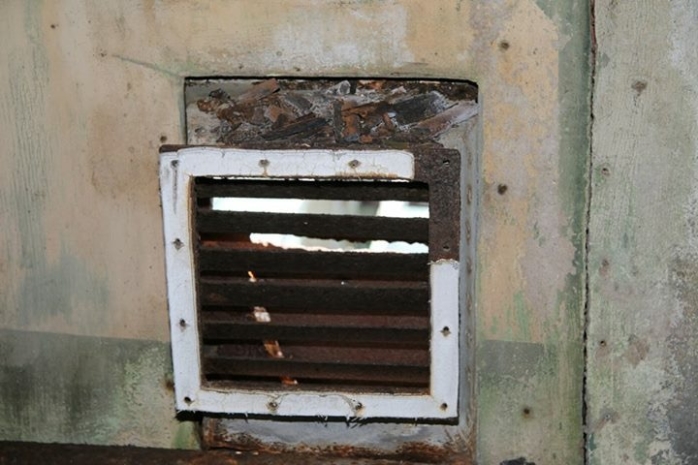

Floor level vent |

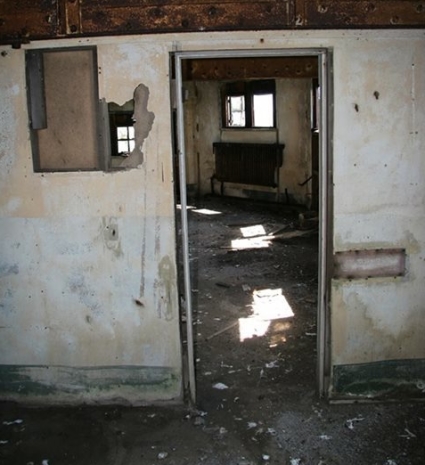

38. In between Spare Room & Plotting Room
Note: Un designated partitioned area
39. Markings: 7/11/42 6c B334 RBR
40. Plotting Room with G2 just in view
| 41.

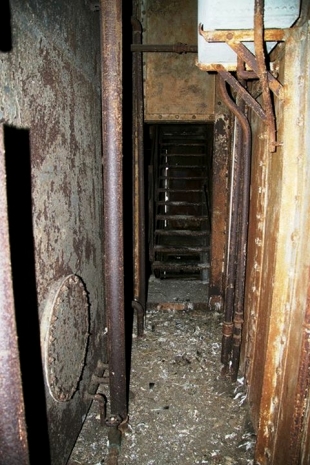

Roof Stairs from Men's Sleeping |
42.

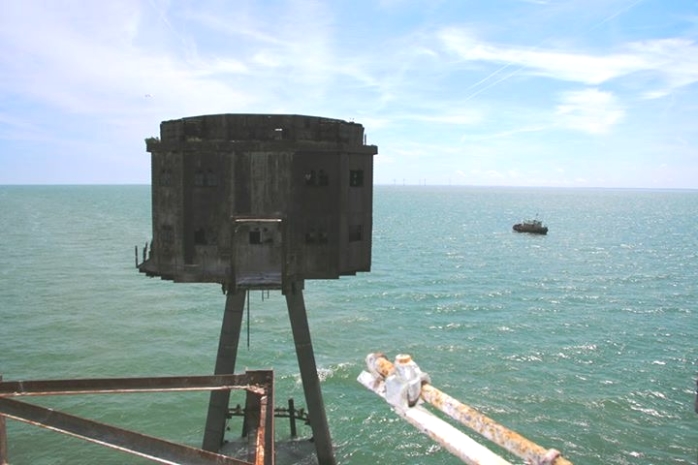

G1 from Intermediate Level Doors |
Note: Header Water Tank right in frame 36 also see frame 42

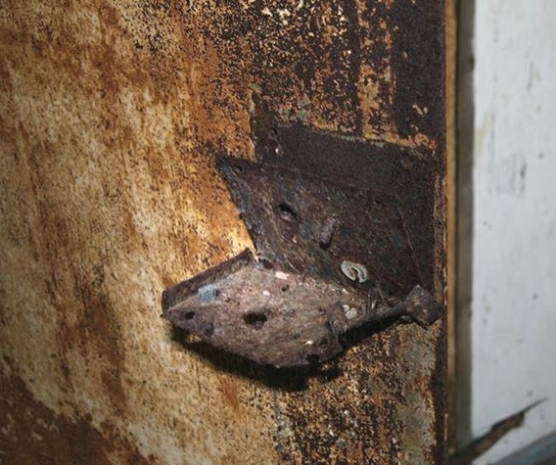

43. Broken Door Mechanism

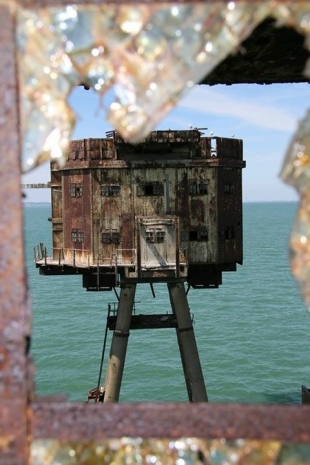

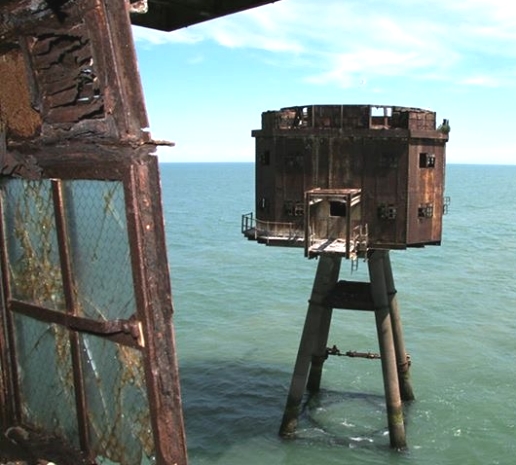

44. G3 from Intermediate Level Doors
45. G2 from Spare Room
46. Spare Room Light Fitting & Shade
| 47.

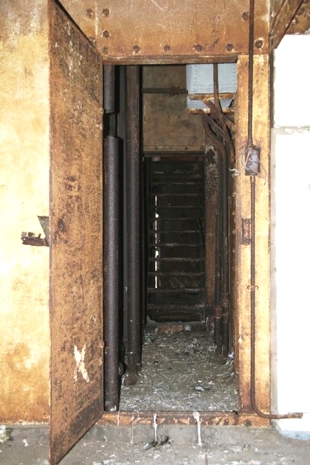

Roof Stairs from Men's Sleeping |
48.

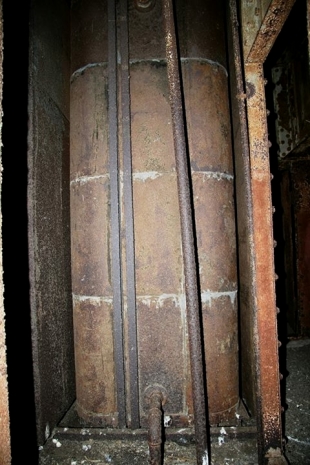

Hot Water Tank |
Note: Main & Header Water Tanks in frame 42 also see image 36

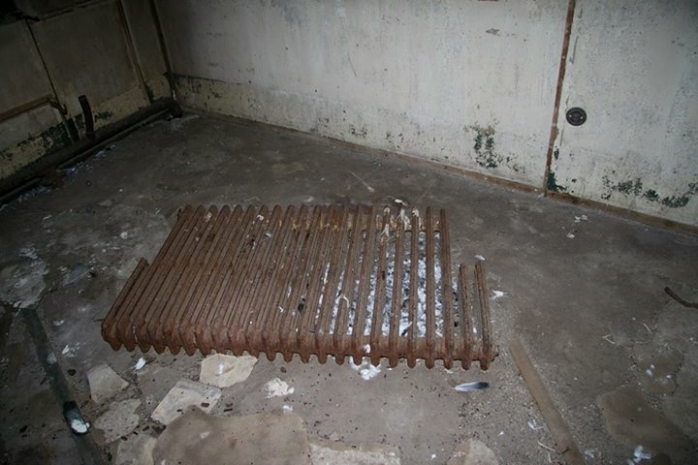

49. Broken Radiator
Note: Many of the all the Forts metal fixtures & fittings scavenged

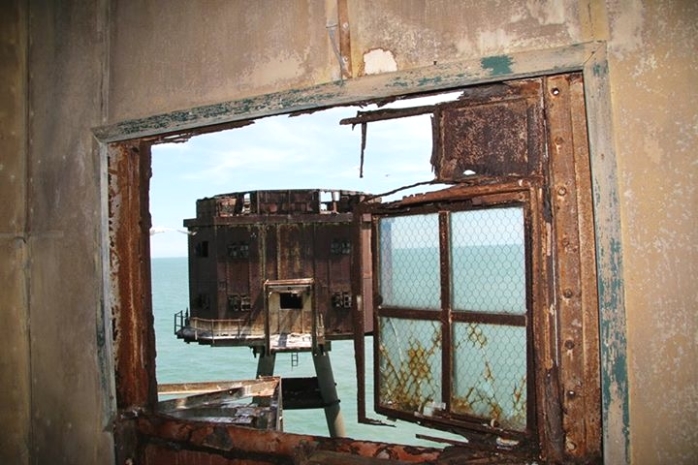

50. G2 from Spare Room 1
51. G2 from Spare Room 2

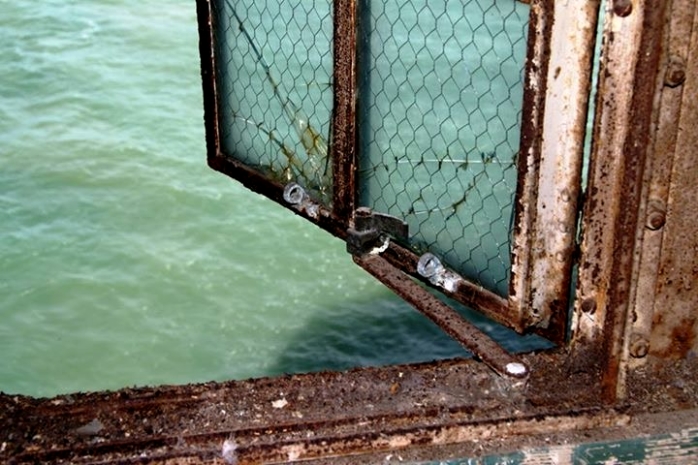

52. Spare Room Window Detail

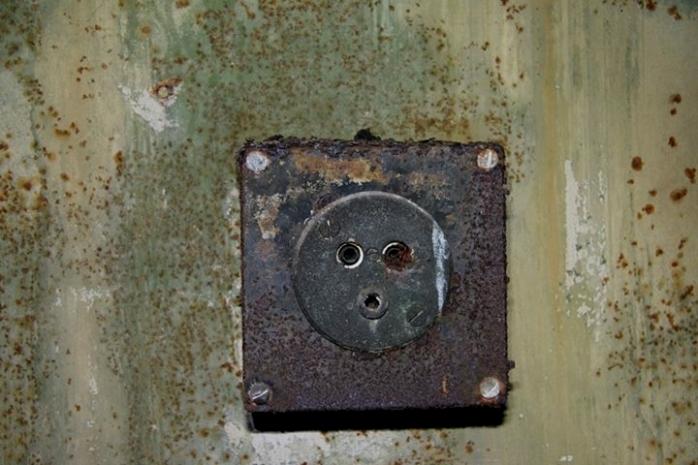

53. Two pin 5 Amp Mains Socket

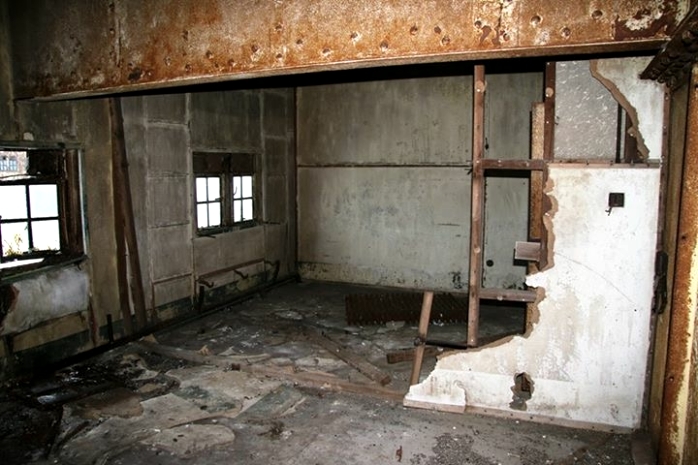

54. Stud Wall Partition between Spare Room & Sick Bay
| 55.
Roof Stairs |
56.
Top of Stairs |
| 57.

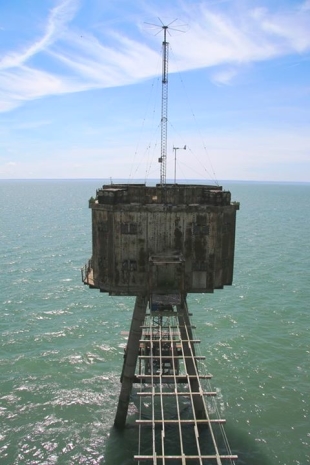

G1 from Roof |
58.

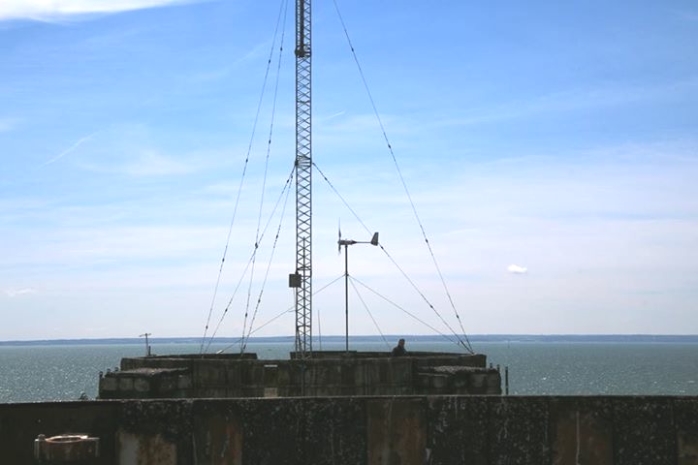

G1 Roof Close-Up |
Note: Red Sands Radio Antenna Guy arrangement
59. Part of Radar Prediction Units
60. Secondary Flag Pole Bracket
