Another chapter in the Sealand post fire series looks at the Wind Turbine, Wood Burner & Water Tanks
N.B Levels referenced in Naval manner A-G then base, rather than Sealand terms A-G for North Deep (Leg) & H-N for South Deep (Leg)
The Wood Burner ...

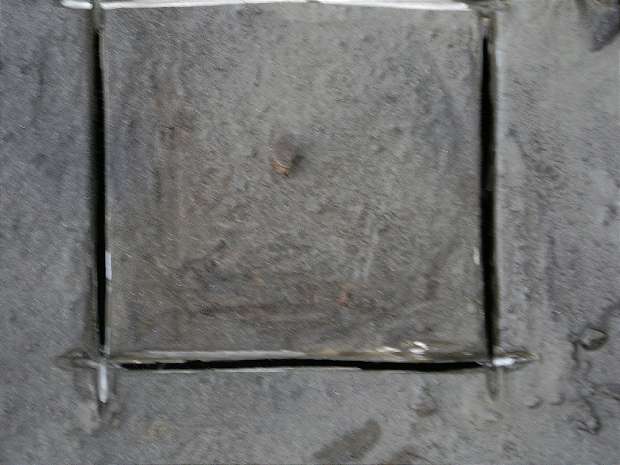

26. Marked up with 'pilot hole' drilled from deck level Lounge (Officers Cabin)

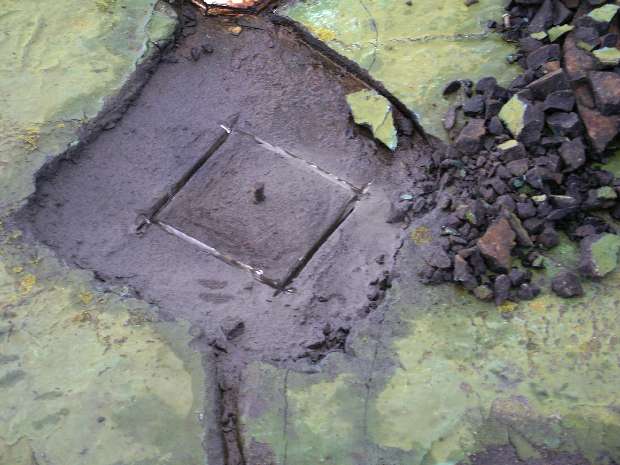

27. Angle cut ...

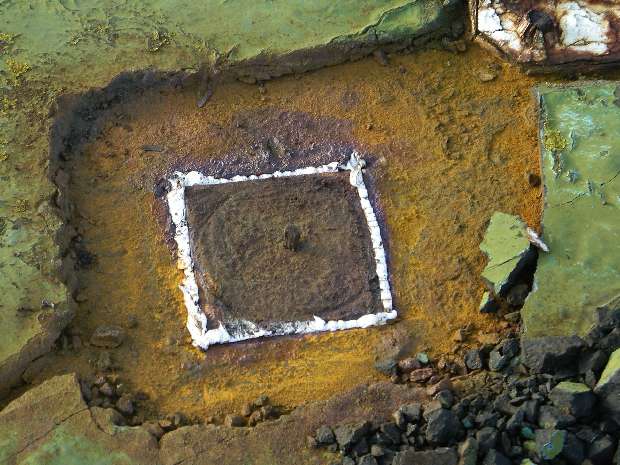

28. Close-up of cut

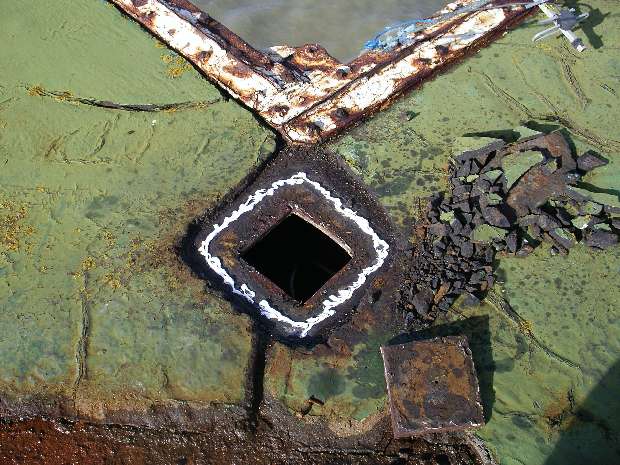

29. Hole made ...
30. ... for chimney ...

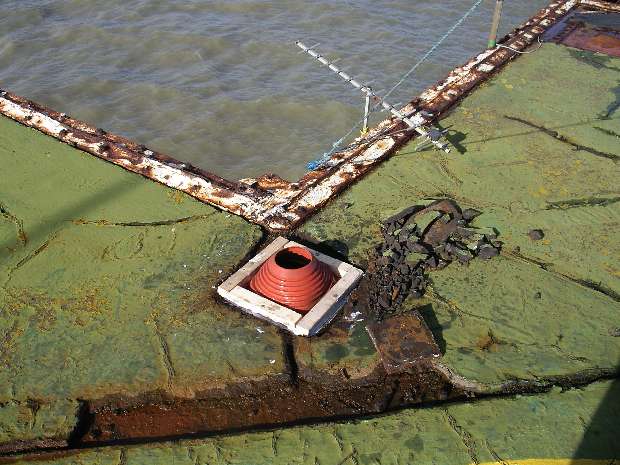

31. ... stack pipe ...
32. ... close-up of chimney arrangement

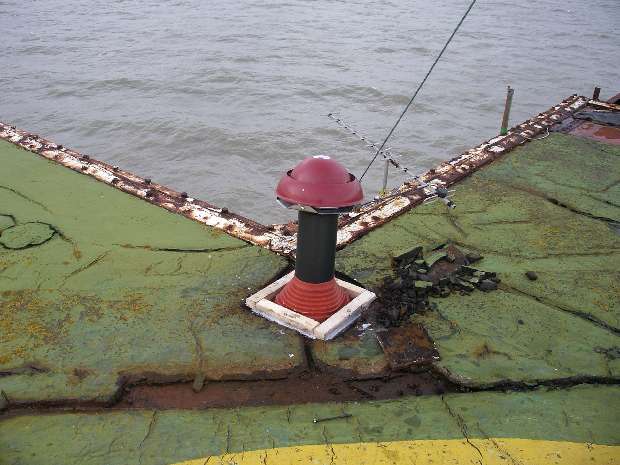

| 33. Chimney
arrangement ... |
34. ...

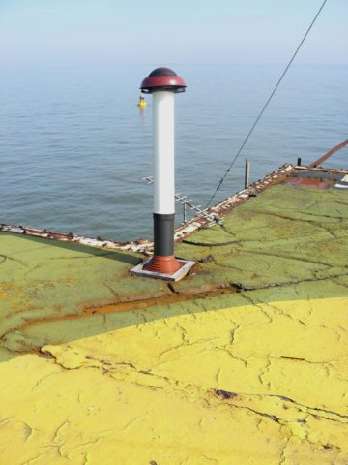

increased stack height |

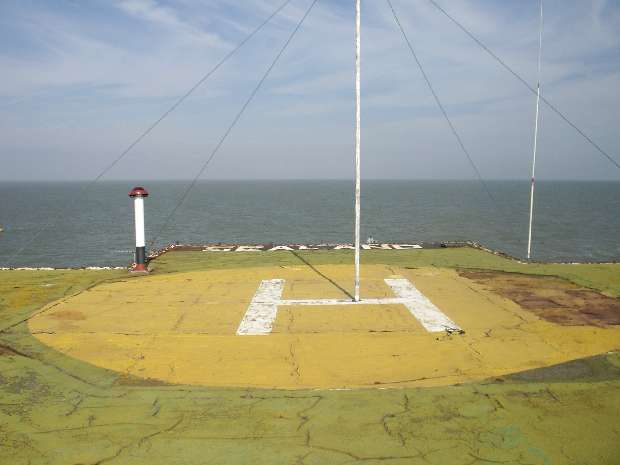

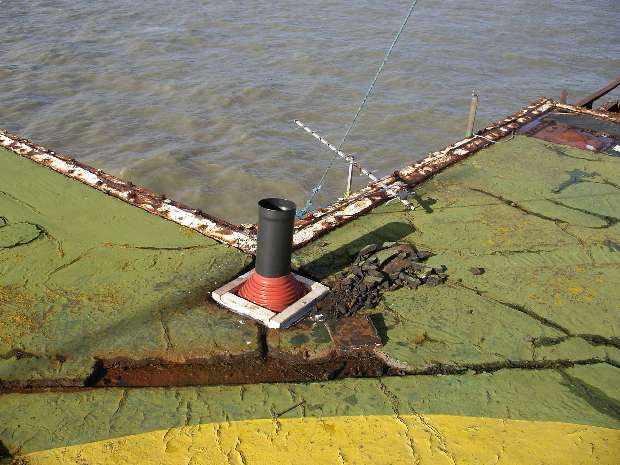

35. Chimney in relation to Heli-Pad

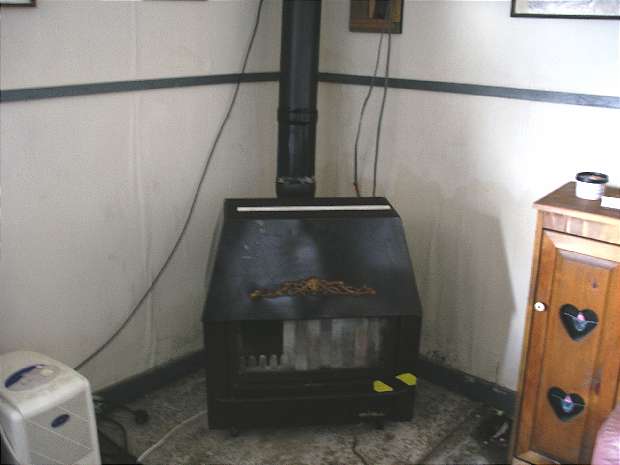

36. Lounge, Wood Burner ...
37. ... appears to work ok
